Wilmonda Special Tools

The French company produced a series of tools unique to the postwar Panhards. Their three-letter codes are cited in the workshop manuals and are illustrated here for guidance. A few of the tools, highlighted in yellow, are available to purchase from Dynamic Club Panhard et Levassor (DCPL): http://www.dcpl.fr/?page_id=20

DAB

Press for removing and replacing door check straps

W-DAB

DAC

Device for setting crownwheel and pinion mesh

W-DAC

DAD

Wrench to hold pivot nut for adjustment of rockers with hydraulic backlash take-up       (Pre1958)

W-DAD

DAF

Wrench to adjust door striker plate

W-DAF

DAG

Graduated disc for setting camshaft timing

W-DAGa

DAH

Notched wrench for overdrive pinion locking ring

W-DAH

DAJ

Socket for removing pinion locking ring (Dyna X only)

DAJ-2

DAK

Lever for removing gearbox selector fork shafts

DAK

DAL

Drift and bed for removing  pushrod pins

W-DAL

DAM

Wooden support for cylinder.

W-DAM

DAP

Extractor for crankshaft rear main bearing

W-DAP

DAQ

Drift for setting the ‘Nadella main bearing seal

Wilmonda_DAQ copy

DAR

Piston ring clamp

W-DAR

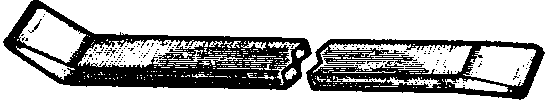

DAS

Prise bar for removing cylinders from crankcase

DAS-1

DAT

Peg to lock flywheel when  removing crankcase ventilator

W-DAT

DAV

Plug for centring camshaft cover

W-DAV

DAW

Drift for removing gudgeon pins

DAW-1

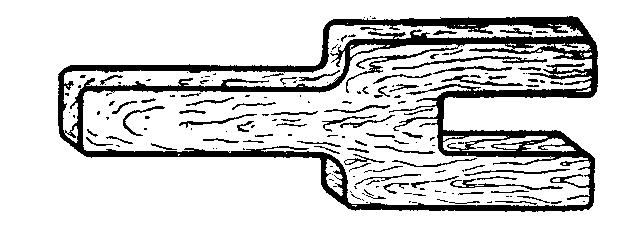

DAX

Conrod/piston support when removing cylinder

DAX-1

DAZ

Lever for removing valve cotters

W-DAZ

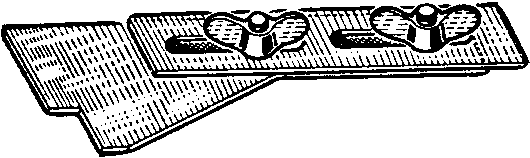

DEA

Gauge for adjusting rear suspension (Dyna X only)

DEA-1

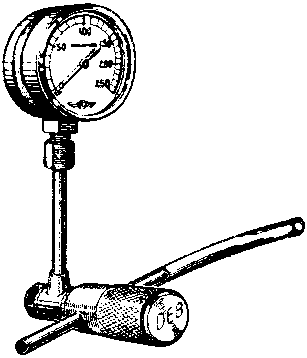

DEB

Apparatus for testing oil and fuel pump pressures

DEB-1

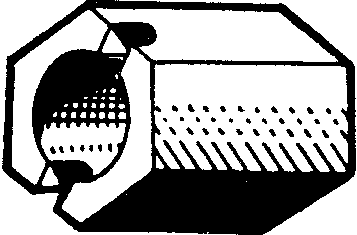

DED

Crank handle nut (Dyna X only)

DED-1

DEF

Timing gear extractor

W-DEF

DEG

Plate to check adjustment of crankcase ventilator

W-DEG

DEH

As DAD above (1958 onwards)

W-DEH

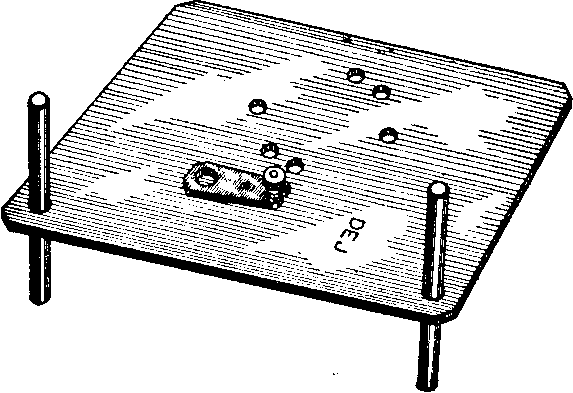

DEJ

Plate for balancing shock absorbers

DEJ

DEK

Drift and guide for installing crankshaft rear oil seal (pre1956)

W-DEK

DEL

Ditto (1956 onwards)

W-DEL

DEM

Device for holding valves in place

W-DEM

DEN

Driver for fixing screws on reduction gear and crankshaft balance weights

W-DEN

DEQ

Device for checking the angle of crankcase ventilator without      removing the distributor tower

W-DEQ

DER

Toothed key for adjusting  tracking

W-DER

DES

Device for removing, replacing and adjusting valve torsion bars   without removing the engine

W-DES

DET

Extractor for intermediate coupler in rear suspension arms

W-DET

DEU





W-DEU

DEW

Extractor with pressure pads to remove bearing housings on axles F&R

W-DEW

DEX

Extendable drift for installing Cyclam seals in final drive

W-DEX

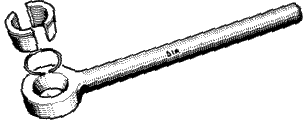

DIA

Tool for removing upper bearing of valve torsion bar

W-DIA

DIJ

Device for checking axial play in conrods

W-DIJ

DIO

Guide for inserting U-flex control ring into cylinder

W-DIO

DIP

Socket for drive shaft plate fixings

W-DIP

DIT

Wrench for exhaust nuts on cylinderhead

W-DIT

PAZ

 Brake adjuster wrench (10x10)

W-PAZ

TAX

Bearing extractor for gearbox and axles F&R

W-TAX
